5W 5.0V DC 1.0A USB

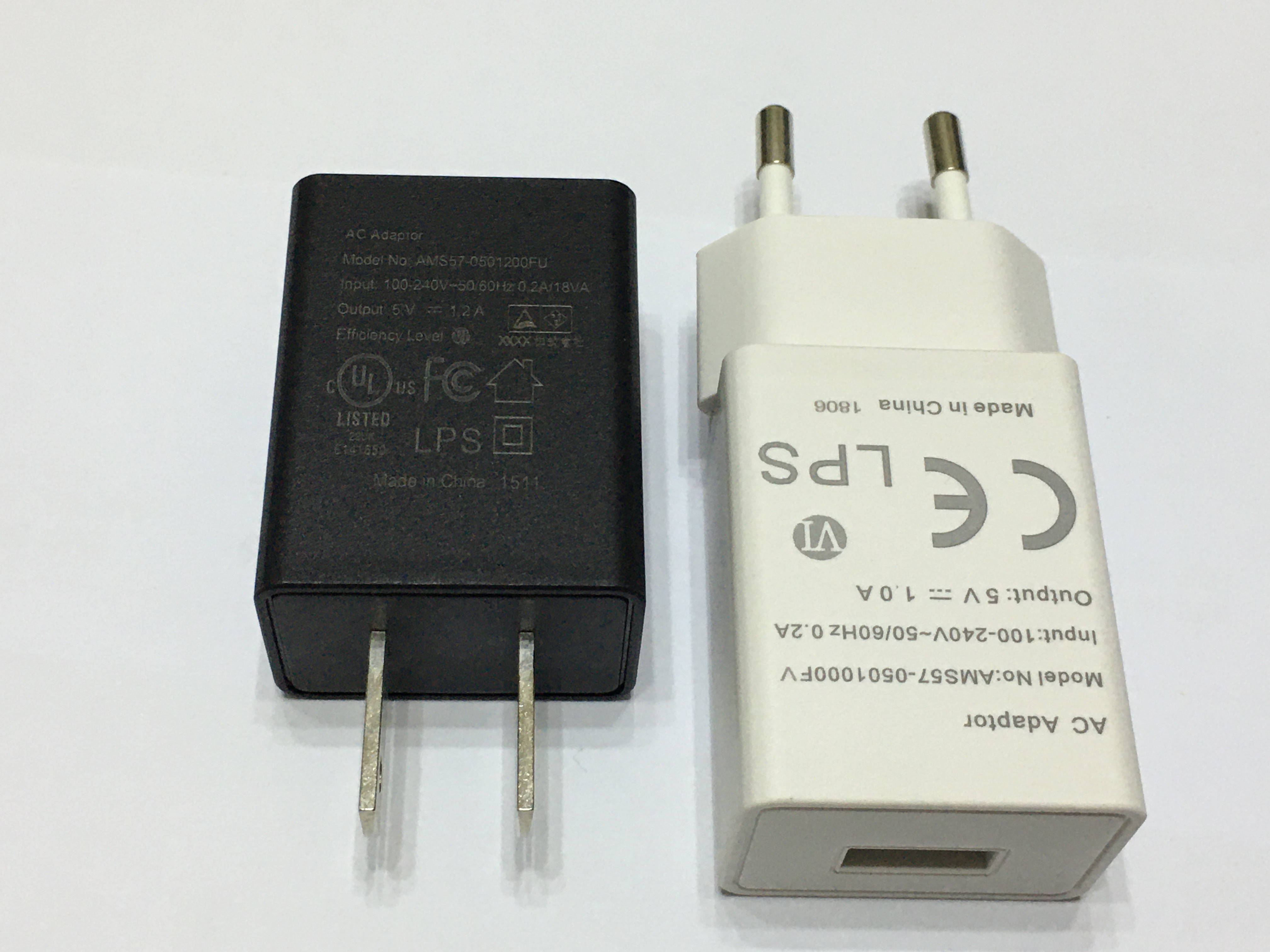

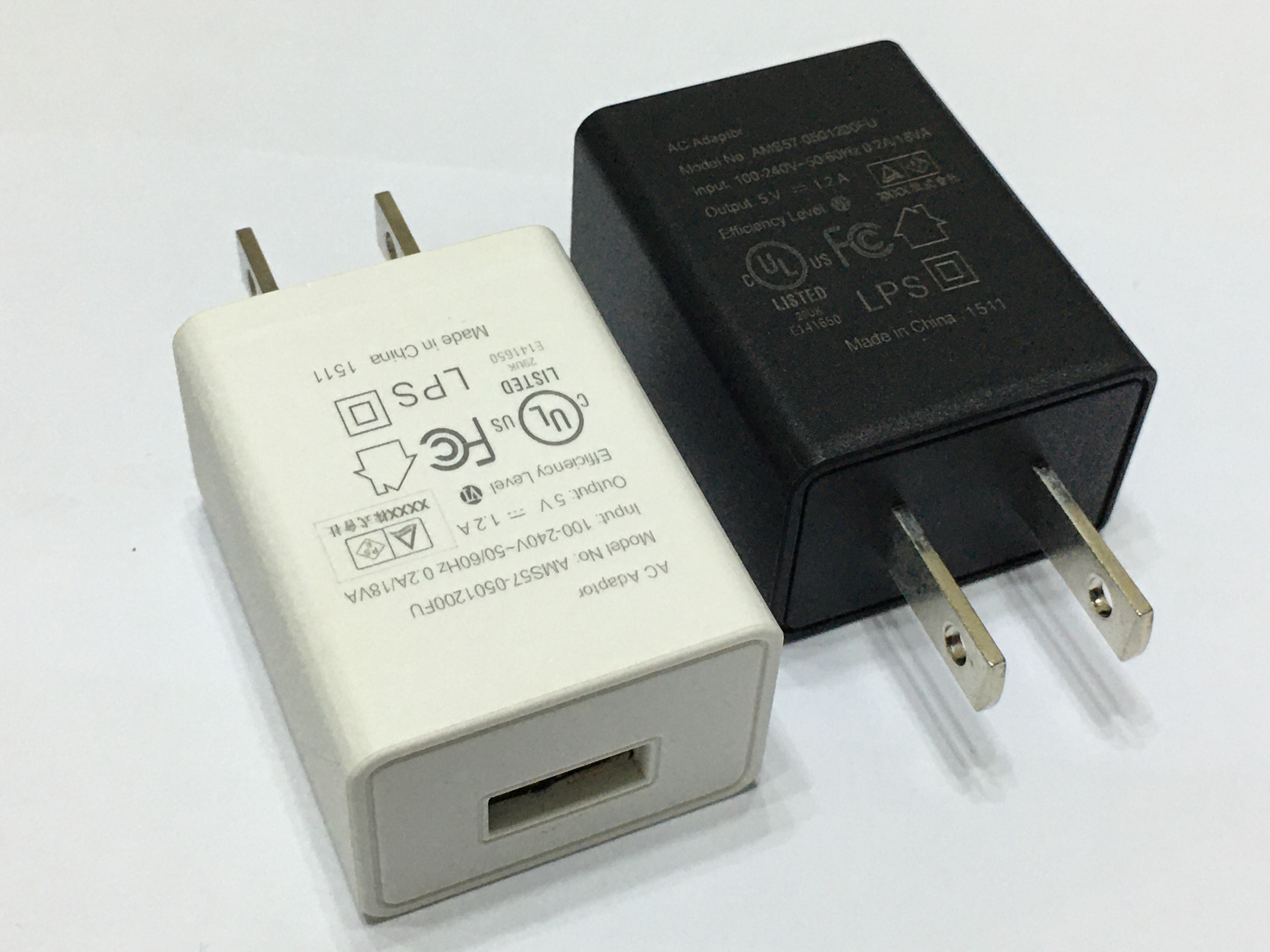

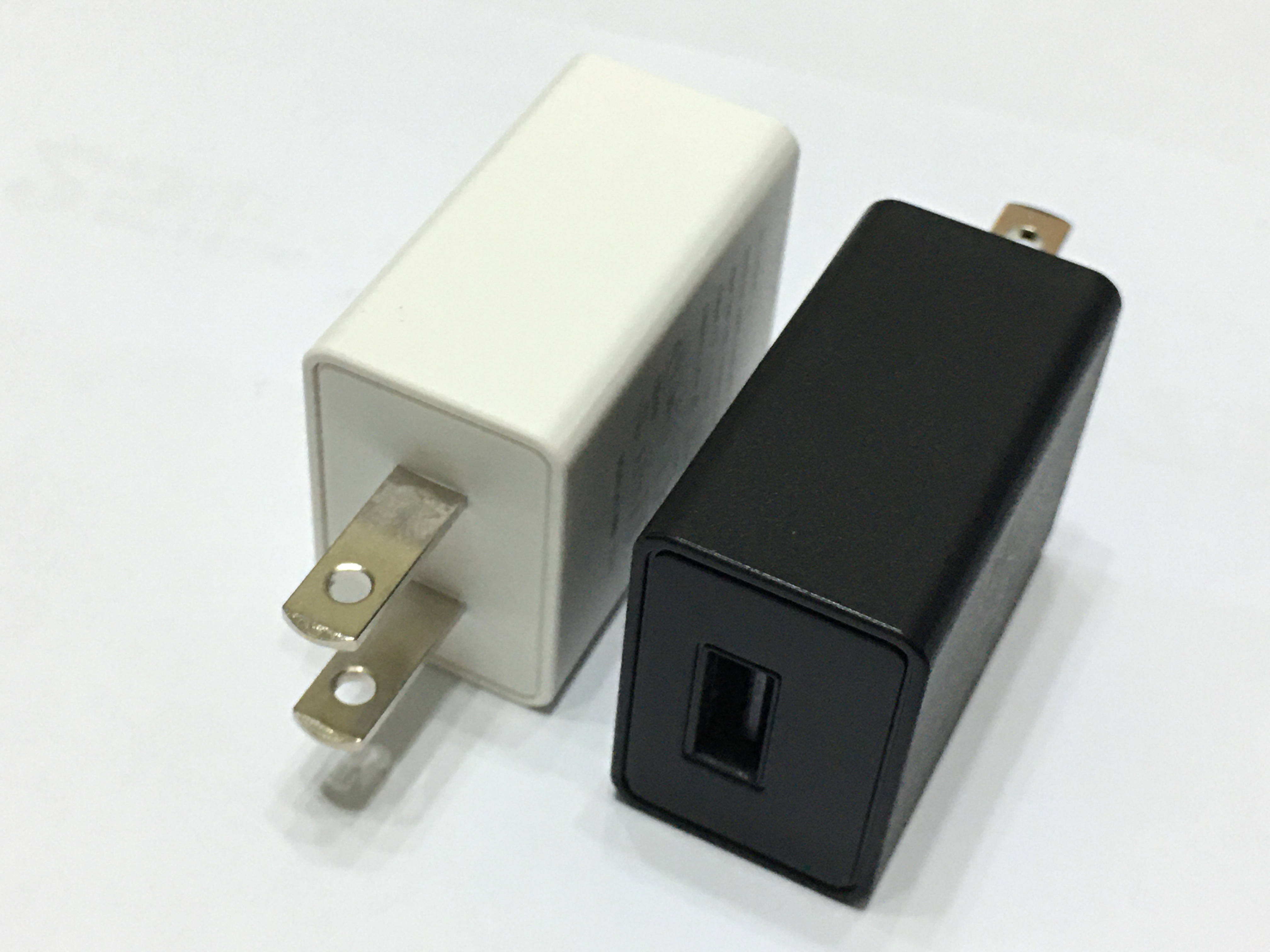

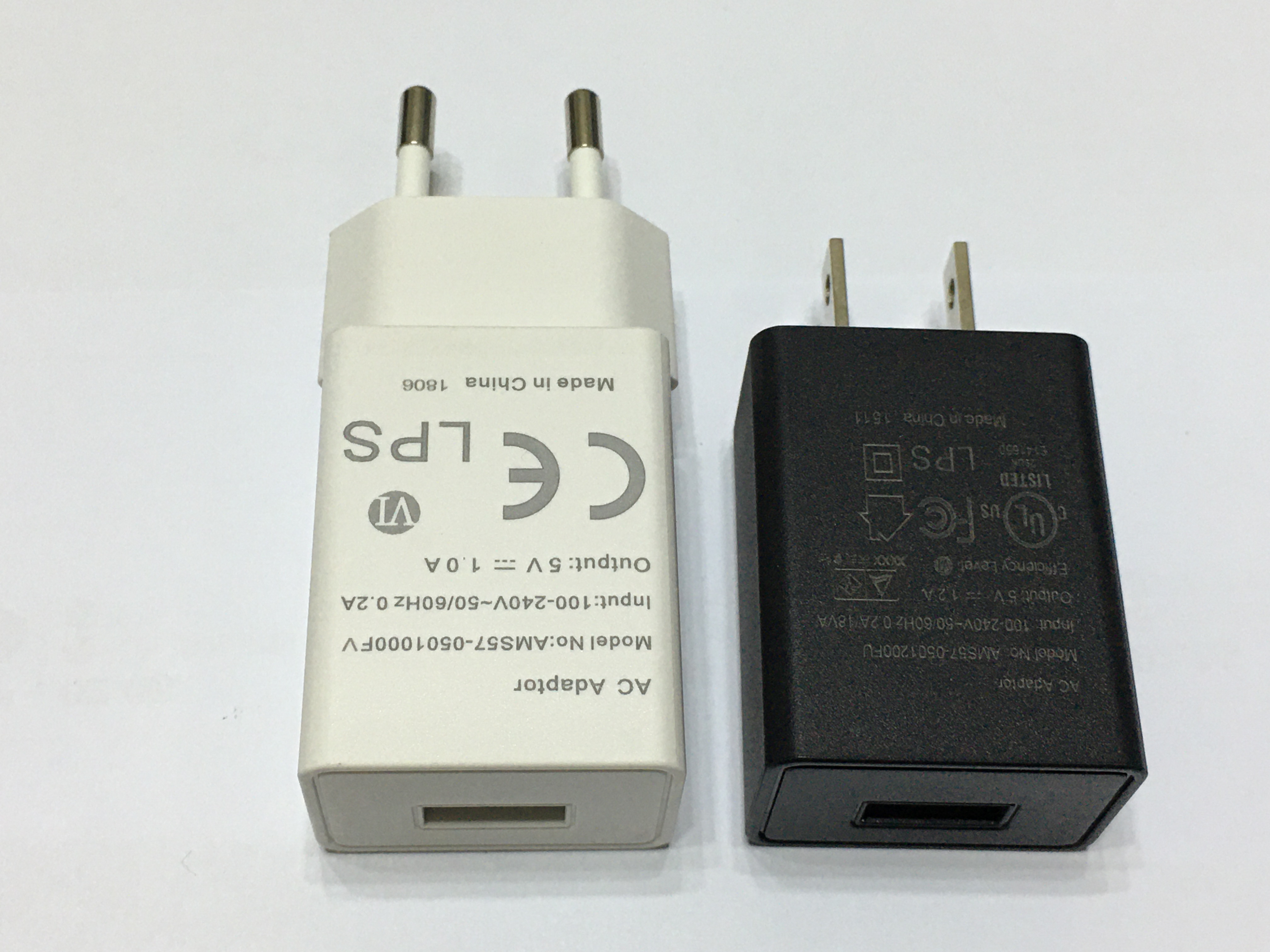

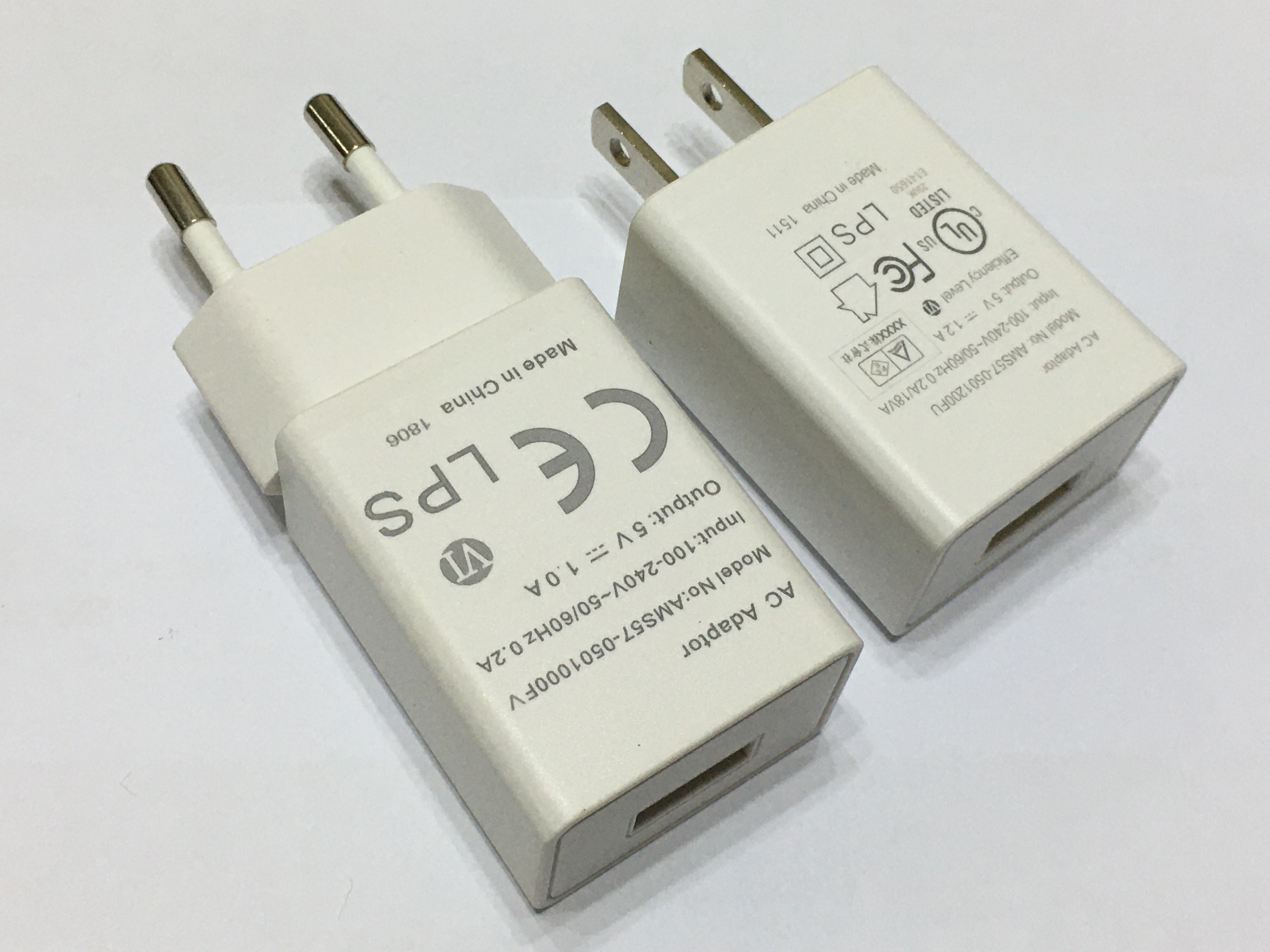

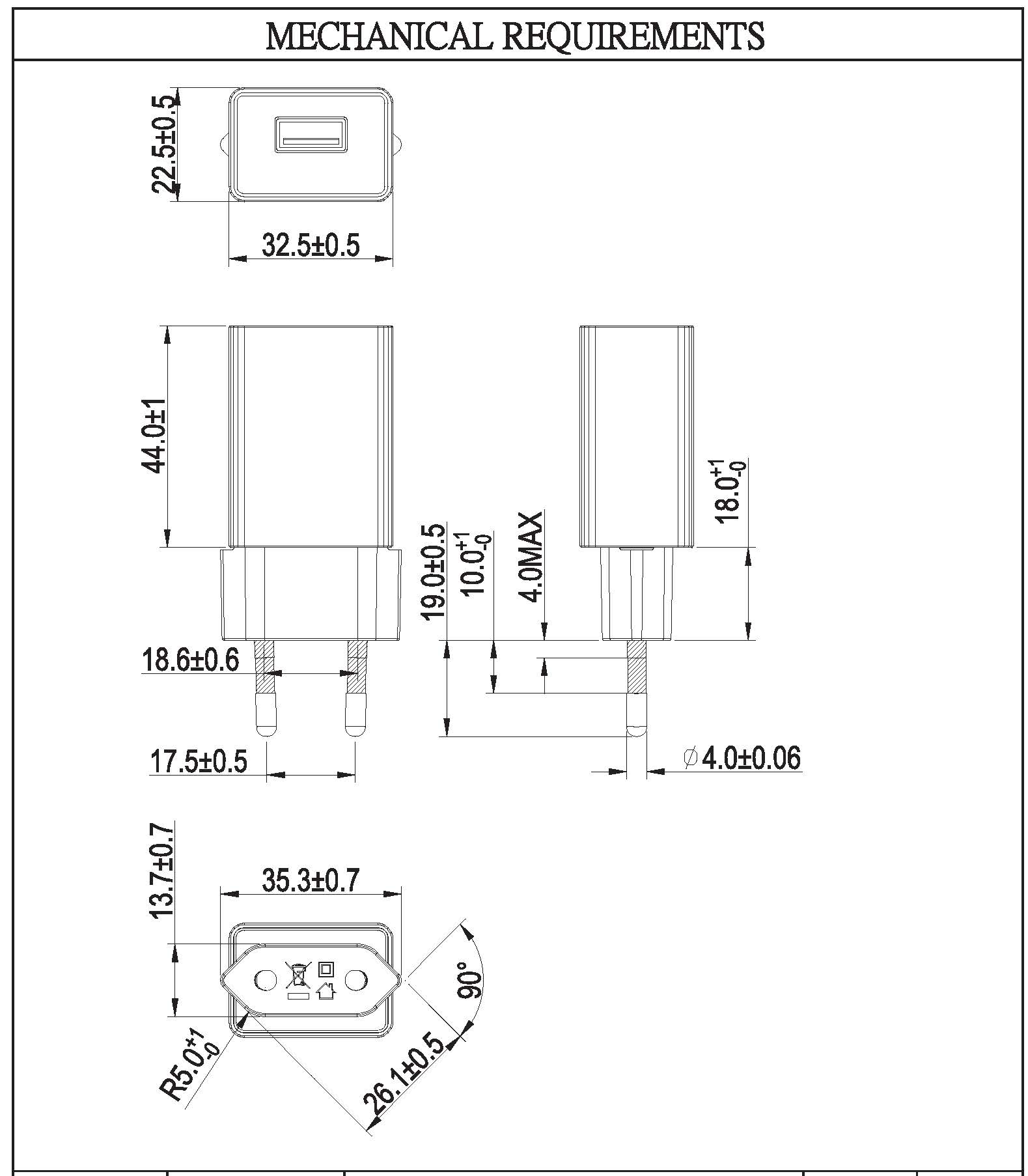

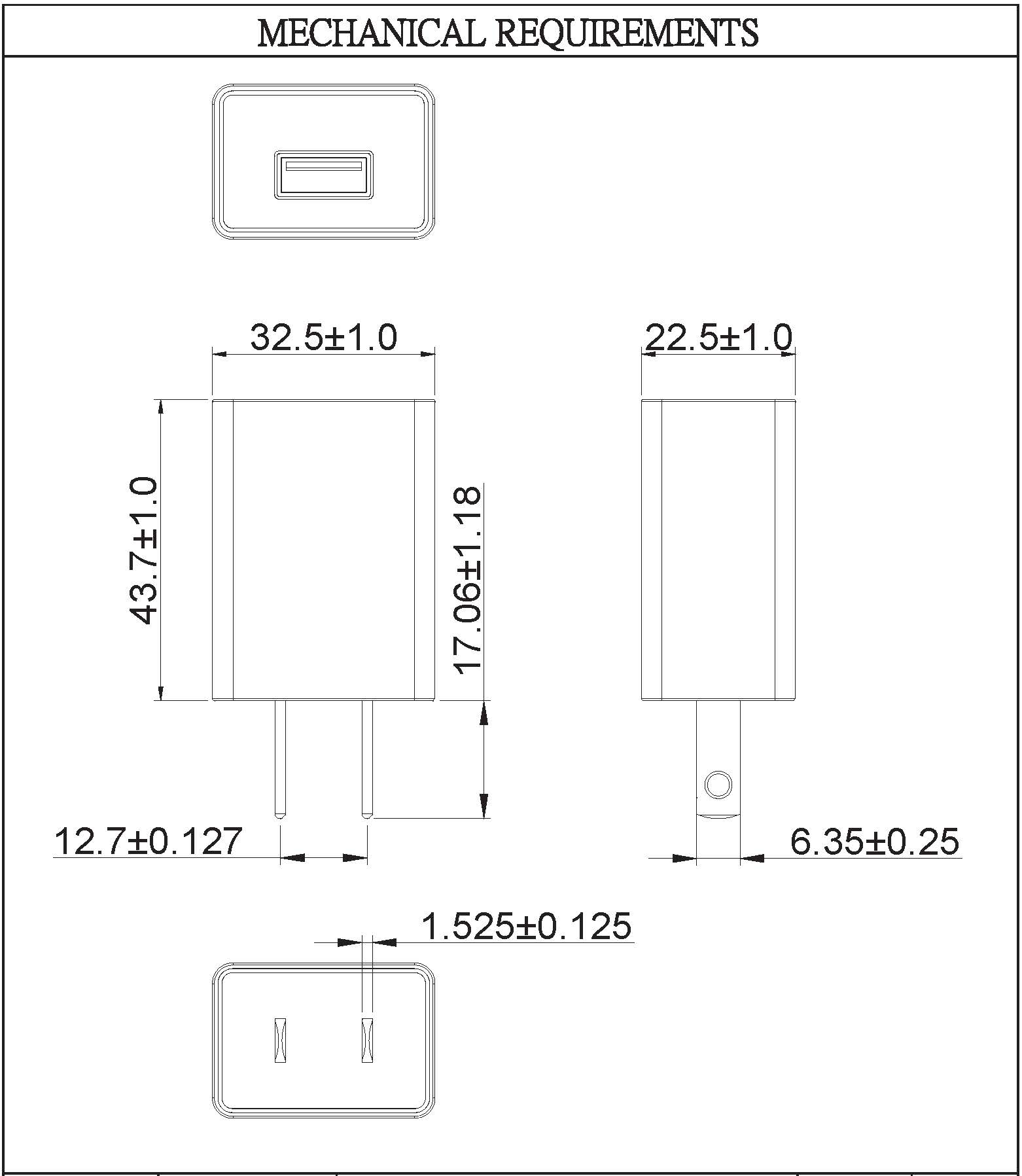

USB A-Type Adapter 5W 5V DC 1A EU,USA 美歐插頭

It is normal from 100Vac to 240 Vac input AC voltage
Protection:
a) Short Circuit protection
b) Over current protection ( OCP) 2A max.
c) Over voltage protection ( OVP ) 7.5 V max.

快速詢價相關文件

USB A-Type Adapter 5W 5V DC 1A EU,USA
ADAPTER 電氣特性要求
1. Electrical:
1-1. Input Characteristics:
1-1-1.Rated Voltage
It isnormalfrom      100    Vac to 240 Vac input ACvoltage

1-1-2.Input Voltage Range
The Adapter shalloperatefrom        90          Vacto      264 Vac input AC voltage 1-1-3.RatedFrequency
It isnormalfrom       50      Hzto      60       Hz and singlephase.

1-1-4.Frequency Range
The Adapter shall operate with an input frequencyfrom 47   Hzto         63 Hz.

1-1-5.Steady AC Current
Maximum steady state input current is lessthan 0.2 Arms. Measured at 100Vac Inputvoltage.

1-1-6.Inrush Current
At Full Load ,25℃, Cold Start
No Component Over Stress and No Fuse Blow No Damage To The Power Supply

1-1-7.Minimum Average Efficiency In Active
73.77%          min. measuredatI/P:       115 Vac/60 Hz or 230 Vac/ 50 Hz & ActiveLoading:25%/50%/75%/100%
Formula : [0.0834*LN( V*I )-(0.0011*(V*I))+0.609]%
( After full load burn in 30min Criteria : Level VI)
64.59%          min. measuredatI/P:       115 Vac/60 Hz or 230 Vac/ 50 Hz &Loading:10%
Formula : [0.0834*LN( V*I )-(0.00127*(V*I))+0.518]%
( After full load burn in 30min Criteria:Level  VI )

1-1-8.No load power ( Stand-by consumption)
The no load power is less than   0.075 W at    115 Vacand 230 Vac (Criteria:Leve VI )

1-2. OutputCharacteristics:
1-2-1.Rated Voltage
The rated output voltage isspecifiedat     5.0Vdc.
1-2-2.Voltage Range
The output voltage will be performed from   5.0 Vdc   -5%      /      5%   .
1-2-3.Line Regulation
The output voltage is specifiedatVout ±2%.
1-2-4.Load Regulation
The output voltage is specifiedatVout -5% / 5%.
1-2-5.Current
This Adapter can work from 0 A to 1.00 A( full load ) and output voltage is in section 2 specified range.
1-2-6.Rated Power
This Adapter capabletosupport       5       Watts continuously at all specifiedconditions.

1-2-7.Output Ripple and Noise
Ripple &Noise≦200    mVp-p (Full loadatI/P:      115Vac       60      Hzand    230     Vac 50                                Hz)Measuredmethods:
Performed by 20MHz bandwidth in oscilloscope. Applied 0.1uF ceramic capacitor and 10uF electrolytic capacitor across output connector terminal. Measured at the end of DC cable.
Test temperature at 25℃.
1-2-8.Turn On Delay Time
3     Smaximum.    Tested@         90      Vacand      264   Vacinputand     5 W full load at output.
1-2-9.Hold UpTime
10        mS Min atMaxLoad         115 Vac/60     Hz ( O/P Typical VoltageDropDown5%)
10        mS Min atMaxLoad         230 Vac/50     Hz ( O/P Typical VoltageDropDown 5% )
1-2-10.Protection
Short Circuitprotection
The Adapter is protected that a short happened between the output terminals and shall not result in a fire hazard, and will be normal operation automatically while the short is removed.
Over current protection (OCP) 2Amax.
Over voltage protection ( OVP)7.5 V max.

2.      Environmental:
2-1.Temperature
2-1-1.Operating
The Adapter is capable tooperatefrom       0     ℃to. 40℃
2-1-2.Non- Operating
The Adapter is capable to be stored from -10 ℃to. 60 ℃
NOTE:The bending angle of SR part must not be exceed 90˚ 2-2.Humidity
2-2-1.Operating
The Adapter is capable tooperatefrom      10      to      90 % RH. ( non condensing) 2-2-2.Non-Operating
The Adapter is capable to bestoredfrom     5        to      95 % RH. ( non condensing) 2-3.Dielectric Withstand Voltage ( HI – POT)
The Adapter shallbeapplied                3000        Vac for 60 seconds or 4242 Vdc for 60 seconds between ACinput terminals and output terminals. The cut off current is specified ≦ 10mA.
2-4.Insulation Resistance
Primary to secondary:≧ 50     M ohm. 500VDC.
2-5.EMI Requirement
The adapter complieswith:      V      FCC Part 15ClassB EN55022ClassB J55022 Class B AS/NES 3548ClassB                          CNS13438ClassB                           ICES-003 ClassB
GB9254ClassB other
2-6.EMS
ESD:± 8KV airdischarge, ± 4KV contactdischarge PLD (lightningsurge IEC61000-4-5)
(1) CommonMode      +/- KV ( 12 ohm ) . Class Ⅰ(line to earth , neutral to earth , line to neutral)
DifferentialMode+/- 1KV ( 2 ohm ) . Class Ⅱ(line to neutral)
